The used with LSS CCD camera (1994,*) was designed in the Laboratory of Spectroscopy and Photometry of Extragalactic Objects of SAO RAS on the base of CCD chip ISD015A ("Electron", St-Petersburg). The cryostat of CCD camera was produced in VNIIT.

* CCD camera authors: Gudkin (VNIIT), V.L.Afanasiev and S.V.Drabek (SAO)

A cryostated Charge Coupled Device (CCD) parameters:

Parameter Value
Pixel size 18*24 mkm
Format 530*580 pixels
ADU 3.3 (used), 7, 15 electrons
Readout noise 12 electrons
Full well capacity -100000 eletrons
Dymamic range 0 - 8191 ADU

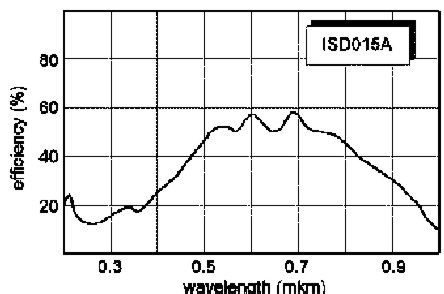

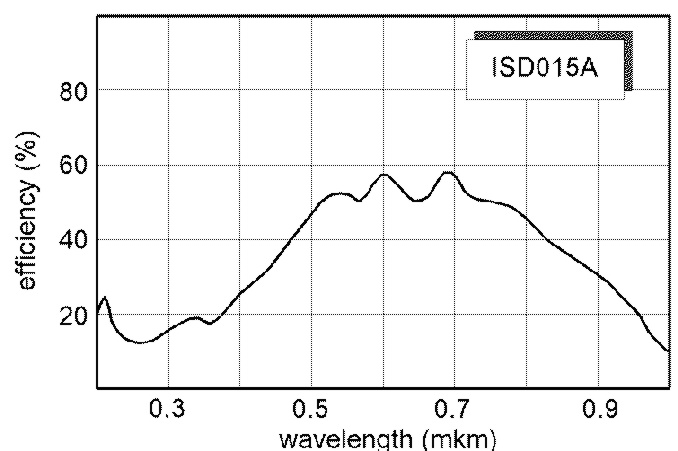

The spectral sensibility of CCD:

Spectral sensibility of CCD (small)
