LSS gratings parameters:
| No
|
gr/mm |
Groove angle |
Order |
Max. of concentration |
Wavelength range | Reciprocal dispersion |
Resolution |
Spectral range |
|---|---|---|---|---|---|---|---|---|
| [A], [%] | [AA] | [A/px] | [A] | [A] | ||||
| 828 | 325 | 4 | I | 4500, 68 | 3400-9500 | 5.7 | 18 | 3300 |
| 52 | 651 | 8 | I | 4500, 70 | 3400-9500 | 3.1 | 9 | 1800 |
| 51 | 651 | 25.9 | II | 6500, 50 | 5000-9500 | 1.5 | 4.5 | 900 |
| 51 | 651 | 25.9 | III | 4300, 38 | 3500-5200 | 1.0 | 3 | 580 |
| 825 | 1302 | 17 | I | 5000, 65 | 3500-9000 | 1.5 | 4.5 | 900 |

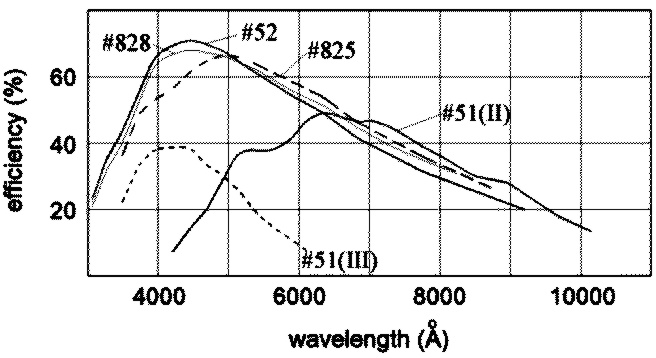

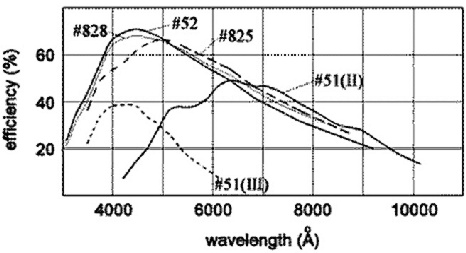

Relative intensity of the reflected light:
