The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 1008_001.1

173.196941 -15.756621
A : B 5.17 : 1.41
e 0.728
B/A 0.272
A/B 3.67
PA 25.0
r (mag) 15.76
ANN Votes
0.048 0.048 0.287 0.287 0.987
Visual inspection
Edge-on0
Nearly Edge-on0
Not Edge-on3
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 173.196924 -15.756612 4.102 ± 0.013 1.212 ± 0.004 0.705 0.295 25.25
r 173.196941 -15.756593 4.394 ± 0.008 1.252 ± 0.002 0.715 0.285 24.92
i 173.196938 -15.756585 4.357 ± 0.007 1.397 ± 0.002 0.679 0.321 24.49
z 173.196946 -15.756597 4.152 ± 0.009 1.264 ± 0.003 0.696 0.304 24.62
y 173.196947 -15.756605 3.523 ± 0.014 1.060 ± 0.004 0.699 0.301 25.09
Band kKron magAuto kPetro magPetro
g 3.74 16.813 ± 0.003 6.60 16.795 ± 0.005
r 3.50 15.954 ± 0.002 5.94 15.928 ± 0.003
i 3.50 15.524 ± 0.001 5.28 15.499 ± 0.002
z 3.55 15.281 ± 0.002 5.94 15.252 ± 0.003
y 4.12 15.026 ± 0.004 6.60 14.995 ± 0.007

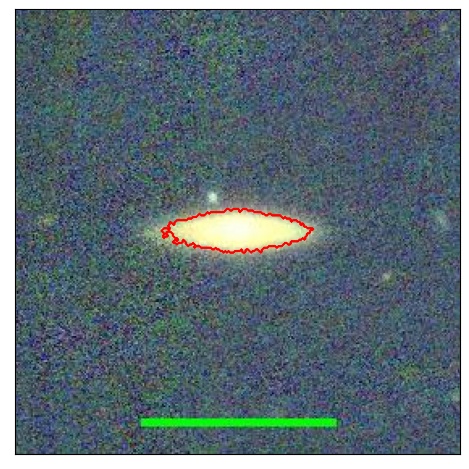

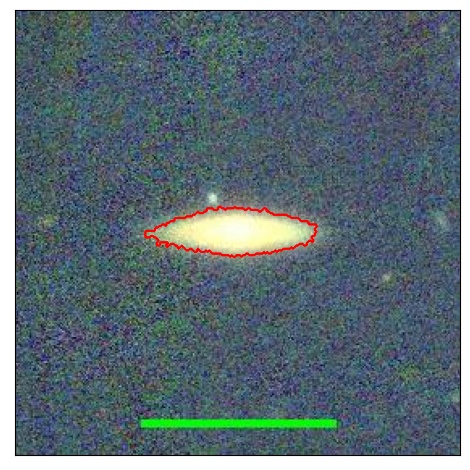

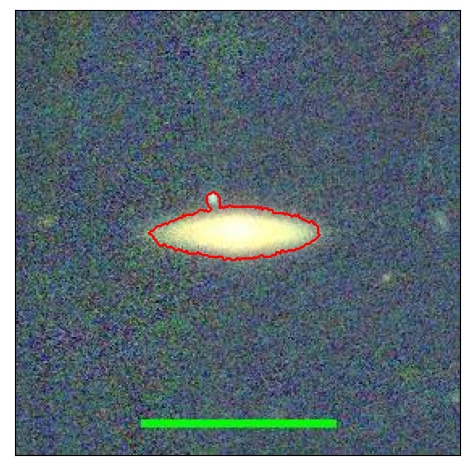

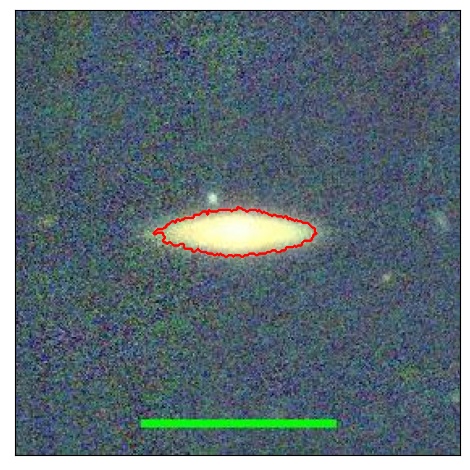

1008_001.1_contour_g1008_001.1_contour_r1008_001.1_contour_i1008_001.1_contour_z1008_001.1_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.683 3.153 0.683 3.153 11.900 5.541 1.506 3.449 6.711 0.518 -1.943 3.245 0.027 0.012
r 0.696 3.287 0.696 3.287 11.721 5.306 1.349 3.249 6.503 0.540 -2.038 3.415 0.073 0.029
i 0.689 3.215 0.689 3.216 11.382 5.245 1.378 3.194 6.254 0.525 -1.981 3.285 0.026 0.000
z 0.687 3.195 0.687 3.196 11.334 5.165 1.368 3.158 6.144 0.528 -1.986 3.262 0.011 0.005
y 0.686 3.188 0.686 3.188 11.148 5.025 1.372 3.304 6.594 0.532 -2.015 3.409 -0.041 -0.004
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 173.196924 -15.756612 4.102 ± 0.013 1.212 ± 0.004 0.705 0.295 25.25
r 173.196941 -15.756593 4.394 ± 0.008 1.252 ± 0.002 0.715 0.285 24.92
i 173.196938 -15.756585 4.357 ± 0.007 1.397 ± 0.002 0.679 0.321 24.49
z 173.196946 -15.756597 4.152 ± 0.009 1.264 ± 0.003 0.696 0.304 24.62
y 173.196947 -15.756605 3.523 ± 0.014 1.060 ± 0.004 0.699 0.301 25.09
Band kKron magAuto kPetro magPetro
g 3.74 16.813 ± 0.003 6.60 16.795 ± 0.005
r 3.50 15.954 ± 0.002 5.94 15.928 ± 0.003
i 3.50 15.524 ± 0.001 5.28 15.499 ± 0.002
z 3.55 15.281 ± 0.002 5.94 15.252 ± 0.003
y 4.12 15.026 ± 0.004 6.60 14.995 ± 0.007
1008_001.1
