The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 1233_051.0

5.492413 -1.616909
A : B 3.77 : 0.94
e 0.751
B/A 0.249
A/B 4.01
PA 10.7
r (mag) 16.61
ANN Votes
0.003 0.580 0.580 0.980 0.980
Visual inspection
Edge-on1
Nearly Edge-on1
Not Edge-on1
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 5.492417 -1.616886 3.229 ± 0.020 0.750 ± 0.005 0.768 0.232 11.11
r 5.492419 -1.616903 3.558 ± 0.011 0.935 ± 0.003 0.737 0.263 10.78
i 5.492418 -1.616904 3.147 ± 0.013 0.803 ± 0.003 0.745 0.255 10.82
z 5.492410 -1.616910 2.961 ± 0.016 0.770 ± 0.004 0.740 0.260 11.84
y 5.492414 -1.616903 2.563 ± 0.021 0.690 ± 0.005 0.731 0.269 12.24
Band kKron magAuto kPetro magPetro
g 4.06 17.895 ± 0.008 6.60 17.886 ± 0.011
r 3.97 17.202 ± 0.004 5.94 17.158 ± 0.005
i 3.93 16.869 ± 0.004 5.94 16.841 ± 0.006
z 4.21 16.622 ± 0.006 6.60 16.582 ± 0.009
y 4.67 16.461 ± 0.010 7.26 16.427 ± 0.015

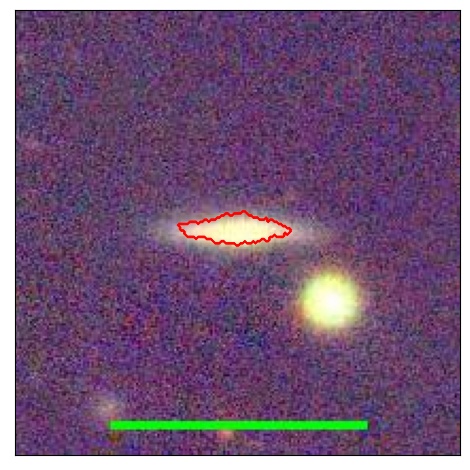

1233_051.0_contour_g1233_051.0_contour_r1233_051.0_contour_i1233_051.0_contour_z1233_051.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.755 4.082 0.755 4.076 10.617 6.045 1.407 3.193 5.962 0.724 -0.849 3.136 -4.185 -0.811
r 0.739 3.834 0.743 3.898 10.108 6.540 1.426 3.082 5.808 0.784 -0.911 3.050 -8.412 -1.386
i 0.745 3.922 0.745 3.919 9.979 5.583 1.266 2.911 5.799 0.697 -0.864 3.305 -4.539 -0.942
z 0.739 3.829 0.740 3.846 9.587 6.093 1.332 3.069 6.205 0.718 -0.889 3.341 -6.013 -1.448
y 0.734 3.756 0.733 3.750 9.933 6.282 1.320 3.047 6.275 0.666 -0.841 3.385 -4.586 -1.068
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 5.492417 -1.616886 3.229 ± 0.020 0.750 ± 0.005 0.768 0.232 11.11
r 5.492419 -1.616903 3.558 ± 0.011 0.935 ± 0.003 0.737 0.263 10.78
i 5.492418 -1.616904 3.147 ± 0.013 0.803 ± 0.003 0.745 0.255 10.82
z 5.492410 -1.616910 2.961 ± 0.016 0.770 ± 0.004 0.740 0.260 11.84
y 5.492414 -1.616903 2.563 ± 0.021 0.690 ± 0.005 0.731 0.269 12.24
Band kKron magAuto kPetro magPetro
g 4.06 17.895 ± 0.008 6.60 17.886 ± 0.011
r 3.97 17.202 ± 0.004 5.94 17.158 ± 0.005
i 3.93 16.869 ± 0.004 5.94 16.841 ± 0.006
z 4.21 16.622 ± 0.006 6.60 16.582 ± 0.009
y 4.67 16.461 ± 0.010 7.26 16.427 ± 0.015
1233_051.0
