The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 1707_021.0

122.815465 +17.000836
A : B 3.32 : 1.05
e 0.685
B/A 0.315
A/B 3.18
PA 94.4
r (mag) 16.63
ANN Votes
0.110 0.939 0.939 0.982 0.982
Visual inspection
Edge-on0
Nearly Edge-on1
Not Edge-on2
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 122.815427 +17.000839 2.868 ± 0.013 0.931 ± 0.003 0.675 0.325 94.24
r 122.815411 +17.000842 2.854 ± 0.010 0.875 ± 0.003 0.694 0.306 94.37
i 122.815422 +17.000853 3.283 ± 0.008 1.016 ± 0.002 0.690 0.310 94.47
z 122.815418 +17.000852 2.642 ± 0.009 0.898 ± 0.003 0.660 0.340 93.79
y 122.815420 +17.000852 1.877 ± 0.009 0.803 ± 0.004 0.572 0.428 93.56
Band kKron magAuto kPetro magPetro
g 3.95 17.334 ± 0.004 6.60 17.284 ± 0.006
r 3.72 16.574 ± 0.003 5.94 16.506 ± 0.004
i 3.50 16.127 ± 0.002 5.28 16.072 ± 0.002
z 3.75 15.888 ± 0.003 5.94 15.814 ± 0.004
y 4.35 15.753 ± 0.005 6.60 15.672 ± 0.007

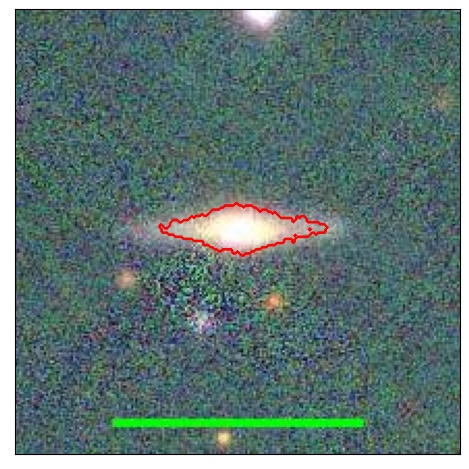

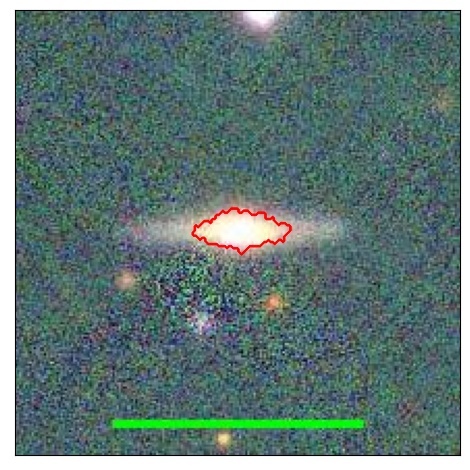

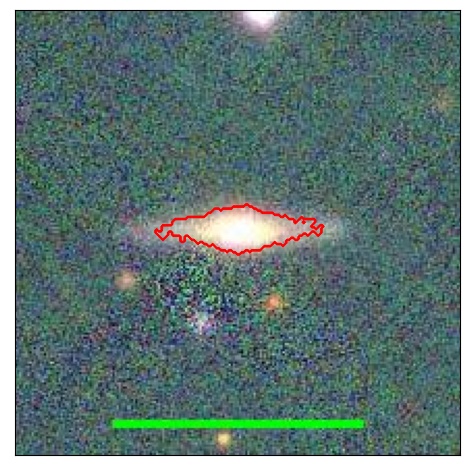

1707_021.0_contour_g1707_021.0_contour_r1707_021.0_contour_i1707_021.0_contour_z1707_021.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.708 3.420 0.708 3.419 10.147 3.916 0.824 1.842 3.774 0.612 -2.051 3.305 0.007 0.014
r 0.712 3.467 0.712 3.467 8.955 3.523 0.699 1.588 3.271 0.627 -2.041 3.350 -0.006 0.006
i 0.693 3.258 0.693 3.258 9.068 3.486 0.743 1.675 3.425 0.615 -2.053 3.318 0.019 0.034
z 0.695 3.275 0.695 3.275 8.355 3.340 0.688 1.569 3.249 0.614 -2.049 3.369 -0.030 0.001
y 0.680 3.129 0.680 3.129 8.221 3.166 0.713 1.691 3.624 0.613 -2.074 3.530 0.012 0.036
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 122.815427 +17.000839 2.868 ± 0.013 0.931 ± 0.003 0.675 0.325 94.24
r 122.815411 +17.000842 2.854 ± 0.010 0.875 ± 0.003 0.694 0.306 94.37
i 122.815422 +17.000853 3.283 ± 0.008 1.016 ± 0.002 0.690 0.310 94.47
z 122.815418 +17.000852 2.642 ± 0.009 0.898 ± 0.003 0.660 0.340 93.79
y 122.815420 +17.000852 1.877 ± 0.009 0.803 ± 0.004 0.572 0.428 93.56
Band kKron magAuto kPetro magPetro
g 3.95 17.334 ± 0.004 6.60 17.284 ± 0.006
r 3.72 16.574 ± 0.003 5.94 16.506 ± 0.004
i 3.50 16.127 ± 0.002 5.28 16.072 ± 0.002
z 3.75 15.888 ± 0.003 5.94 15.814 ± 0.004
y 4.35 15.753 ± 0.005 6.60 15.672 ± 0.007
1707_021.0
