The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 1956_032.1

119.563485 +29.553895
A : B 5.71 : 1.23
e 0.785
B/A 0.215
A/B 4.66
PA 59.4
r (mag) 16.08
ANN Votes
1.000 1.000 1.000 1.000 1.000
Visual inspection
Edge-on2
Nearly Edge-on1
Not Edge-on0
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 119.563626 +29.554003 3.815 ± 0.025 1.014 ± 0.006 0.734 0.266 59.16
r 119.563680 +29.553996 7.128 ± 0.022 1.207 ± 0.003 0.831 0.169 59.49
i 119.563743 +29.554019 6.388 ± 0.018 1.218 ± 0.003 0.809 0.191 59.59
z 119.563906 +29.554074 2.866 ± 0.012 0.998 ± 0.004 0.652 0.348 59.89
y 119.563985 +29.554105 2.035 ± 0.011 0.884 ± 0.004 0.566 0.434 58.73
Band kKron magAuto kPetro magPetro
g 6.42 17.033 ± 0.007 10.56 16.994 ± 0.010
r 4.10 16.304 ± 0.003 7.26 16.248 ± 0.004
i 4.00 15.822 ± 0.003 7.92 15.757 ± 0.004
z 5.12 15.666 ± 0.004 10.56 15.465 ± 0.007
y 5.05 15.521 ± 0.006 8.58 15.325 ± 0.008

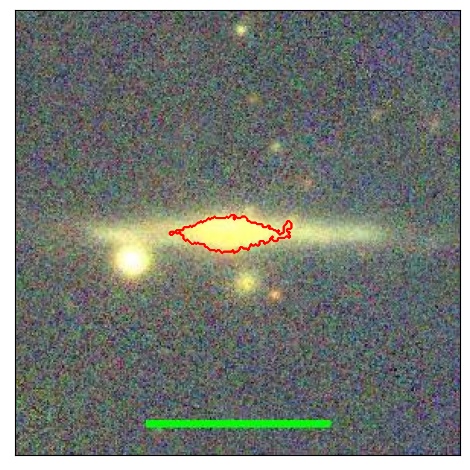

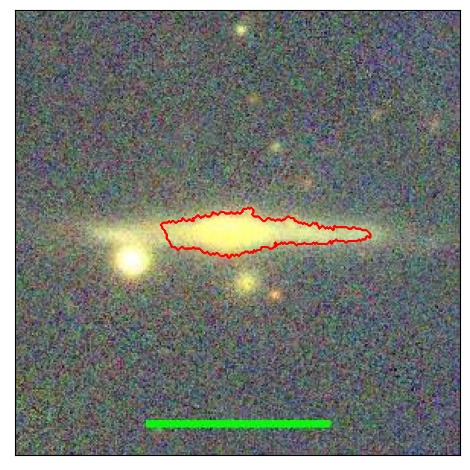

1956_032.1_contour_g1956_032.1_contour_r1956_032.1_contour_i1956_032.1_contour_z1956_032.1_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.819 5.520 0.833 5.998 34.804 17.054 2.867 9.420 15.866 0.599 -0.662 3.715 0.001 -0.316
r 0.808 5.207 0.818 5.481 32.159 14.906 2.149 8.017 15.751 0.683 -0.638 4.325 0.278 -0.011
i 0.798 4.947 0.806 5.163 29.683 12.520 1.754 6.464 15.267 0.697 -0.684 4.698 0.228 -0.051
z 0.784 4.638 0.790 4.773 27.177 9.883 1.048 2.535 5.578 0.679 -0.699 3.632 -0.003 0.010
y 0.778 4.507 0.785 4.641 18.451 7.427 0.960 2.286 4.878 0.655 -0.624 3.529 -0.113 -0.067
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 119.563626 +29.554003 3.815 ± 0.025 1.014 ± 0.006 0.734 0.266 59.16
r 119.563939 +29.554126 6.476 ± 0.020 1.219 ± 0.003 0.812 0.188 59.23
i 119.563958 +29.554110 5.995 ± 0.017 1.229 ± 0.003 0.795 0.205 59.70
z 119.563906 +29.554074 2.866 ± 0.012 0.998 ± 0.004 0.652 0.348 59.89
y 119.563985 +29.554105 2.035 ± 0.011 0.884 ± 0.004 0.566 0.434 58.73
Band kKron magAuto kPetro magPetro
g 6.42 17.033 ± 0.007 10.56 16.994 ± 0.010
r 4.17 16.292 ± 0.003 7.92 16.235 ± 0.004
i 4.05 15.816 ± 0.003 7.92 15.743 ± 0.004
z 5.12 15.666 ± 0.004 10.56 15.465 ± 0.007
y 5.05 15.521 ± 0.006 8.58 15.325 ± 0.008
1956_032.1
