The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 2221_013.0

339.865514 +40.455658
A : B 9.24 : 1.03
e 0.889
B/A 0.111
A/B 9.00
PA 95.1
r (mag) 15.78
ANN Votes
1.000 1.000 1.000 1.000 1.000
Visual inspection
Edge-on3
Nearly Edge-on0
Not Edge-on0
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 339.865753 +40.455646 9.729 ± 0.037 1.024 ± 0.004 0.895 0.105 95.82
r 339.865797 +40.455625 9.766 ± 0.025 1.111 ± 0.003 0.886 0.114 95.88
i 339.865901 +40.455613 10.031 ± 0.017 1.198 ± 0.002 0.881 0.119 95.86
z 339.865665 +40.455627 7.970 ± 0.027 0.977 ± 0.003 0.877 0.123 95.69
y 339.866130 +40.455556 4.810 ± 0.033 0.771 ± 0.005 0.840 0.160 94.62
Band kKron magAuto kPetro magPetro
g 4.34 17.000 ± 0.005 6.60 16.986 ± 0.006
r 3.91 16.218 ± 0.003 5.94 16.198 ± 0.004
i 3.56 15.723 ± 0.002 5.94 15.706 ± 0.003
z 4.18 15.427 ± 0.004 6.60 15.406 ± 0.006
y 5.61 15.229 ± 0.009 9.90 15.225 ± 0.014

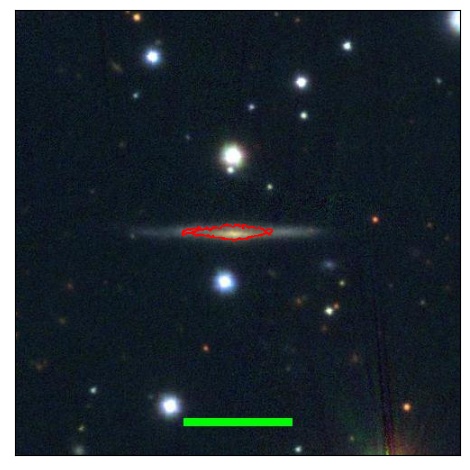

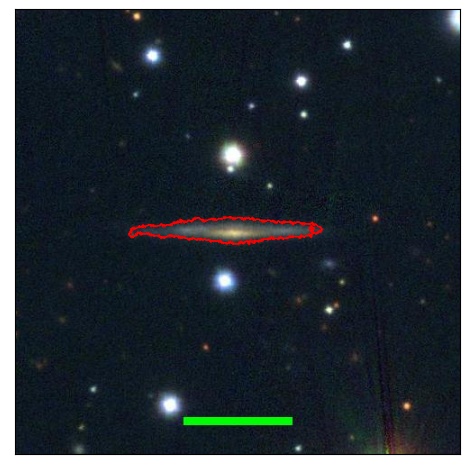

2221_013.0_contour_g2221_013.0_contour_r2221_013.0_contour_i2221_013.0_contour_z2221_013.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.880 8.320 0.875 8.004 31.974 89.912 7.867 14.848 15.624 0.757 -0.997 1.490 0.594 0.180
r 0.873 7.865 0.865 7.381 28.311 29.457 5.262 13.986 14.936 0.767 -0.871 2.265 0.686 0.257
i 0.870 7.691 0.870 7.688 26.588 23.344 3.927 12.247 13.412 0.770 -0.770 2.667 0.771 0.224
z 0.869 7.616 0.869 7.608 25.223 19.095 3.427 11.683 13.598 0.725 -0.676 2.993 0.438 0.096
y 0.863 7.314 0.863 7.309 23.919 14.980 3.010 9.791 13.485 0.626 -0.623 3.256 0.218 -0.052
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 339.865859 +40.455542 5.534 ± 0.028 1.126 ± 0.005 0.796 0.204 97.79
r 339.865986 +40.455525 9.259 ± 0.026 1.180 ± 0.003 0.873 0.127 96.07
i 339.865952 +40.455573 9.967 ± 0.017 1.206 ± 0.002 0.879 0.121 95.84
z 339.865665 +40.455627 7.970 ± 0.027 0.977 ± 0.003 0.877 0.123 95.69
y 339.866130 +40.455556 4.810 ± 0.033 0.771 ± 0.005 0.840 0.160 94.62
Band kKron magAuto kPetro magPetro
g 5.44 17.246 ± 0.007 9.90 17.210 ± 0.010
r 3.90 16.265 ± 0.003 6.60 16.242 ± 0.005
i 3.57 15.723 ± 0.002 5.94 15.705 ± 0.003
z 4.18 15.427 ± 0.004 6.60 15.406 ± 0.006
y 5.61 15.229 ± 0.009 9.90 15.225 ± 0.014
2221_013.0
