The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 2267_054.0

236.359704 +46.189063
A : B 7.39 : 1.48
e 0.800
B/A 0.200
A/B 4.99
PA 110.8
r (mag) 16.01
ANN Votes
0.975 0.997 0.997 1.000 1.000
Visual inspection
Edge-on0
Nearly Edge-on1
Not Edge-on3
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 236.359196 +46.189095 6.856 ± 0.024 1.220 ± 0.004 0.822 0.178 117.09
r 236.359618 +46.188937 6.865 ± 0.025 1.196 ± 0.005 0.826 0.174 116.58
i 236.359676 +46.188893 6.841 ± 0.022 1.274 ± 0.004 0.814 0.186 116.63
z 236.359681 +46.188895 5.676 ± 0.037 0.867 ± 0.006 0.847 0.153 114.38
y 236.359077 +46.189057 2.096 ± 0.032 0.528 ± 0.008 0.748 0.252 113.84
Band kKron magAuto kPetro magPetro
g 4.40 16.764 ± 0.005 6.60 16.716 ± 0.006
r 4.51 16.465 ± 0.005 6.60 16.409 ± 0.006
i 4.43 16.307 ± 0.004 6.60 16.253 ± 0.005
z 5.31 16.333 ± 0.009 7.92 16.259 ± 0.010
y 7.97 16.359 ± 0.015 10.56 16.274 ± 0.018

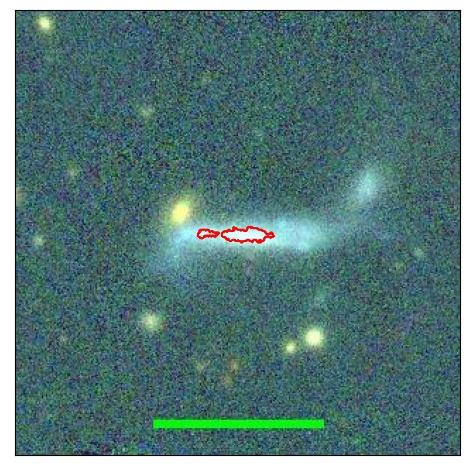

2267_054.0_contour_g2267_054.0_contour_r2267_054.0_contour_i2267_054.0_contour_z2267_054.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.811 5.304 0.811 5.301 24.468 12.276 3.158 8.514 14.317 0.552 -1.349 3.282 0.144 -0.032
r 0.810 5.263 0.810 5.259 29.404 12.917 3.299 9.092 14.240 0.613 -0.815 3.176 0.149 -0.002
i 0.807 5.189 0.807 5.194 28.545 13.230 3.342 9.066 13.540 0.629 -0.740 3.038 0.348 0.041
z 0.809 5.240 0.809 5.249 30.031 13.401 3.381 8.826 12.638 0.564 -0.699 2.863 0.199 0.033
y 0.809 5.230 0.809 5.242 30.251 12.623 2.992 7.577 11.482 0.486 -0.632 2.920 -0.073 -0.062
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 236.359807 +46.188863 7.043 ± 0.025 1.209 ± 0.005 0.828 0.172 116.59
r 236.359158 +46.189041 6.549 ± 0.025 1.209 ± 0.005 0.815 0.185 117.72
i 236.359121 +46.189049 6.446 ± 0.022 1.269 ± 0.004 0.803 0.197 117.82
z 236.359112 +46.189041 5.329 ± 0.035 0.872 ± 0.006 0.836 0.164 114.84
y 236.359077 +46.189057 2.096 ± 0.032 0.528 ± 0.008 0.748 0.252 113.84
Band kKron magAuto kPetro magPetro
g 4.42 16.761 ± 0.005 6.60 16.714 ± 0.006
r 4.58 16.493 ± 0.005 6.60 16.442 ± 0.006
i 4.49 16.340 ± 0.004 6.60 16.288 ± 0.005
z 5.37 16.352 ± 0.009 8.58 16.273 ± 0.011
y 7.97 16.359 ± 0.015 10.56 16.274 ± 0.018
2267_054.0
