The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 2302_077.0

76.586226 +50.842161
A : B 8.32 : 1.38
e 0.835
B/A 0.165
A/B 6.05
PA 21.4
r (mag) 15.73
ANN Votes
0.958 0.958 0.993 0.993 1.000
Visual inspection
Edge-on1
Nearly Edge-on2
Not Edge-on0
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 76.585836 +50.841479 5.629 ± 0.034 1.204 ± 0.007 0.786 0.214 17.57
r 76.586316 +50.842036 9.304 ± 0.024 1.988 ± 0.005 0.786 0.214 20.38
i 76.586332 +50.842076 9.968 ± 0.013 2.223 ± 0.003 0.777 0.223 20.68
z 76.586341 +50.842103 9.537 ± 0.016 1.957 ± 0.003 0.795 0.205 20.59
y 76.586348 +50.842101 8.509 ± 0.021 1.736 ± 0.004 0.796 0.204 20.50
Band kKron magAuto kPetro magPetro
g 6.58 16.948 ± 0.007 10.56 16.905 ± 0.009
r 4.31 15.526 ± 0.003 6.60 15.502 ± 0.004
i 3.86 14.776 ± 0.002 5.94 14.748 ± 0.002
z 4.00 14.280 ± 0.002 6.60 14.250 ± 0.003
y 4.48 13.883 ± 0.003 6.60 13.837 ± 0.004

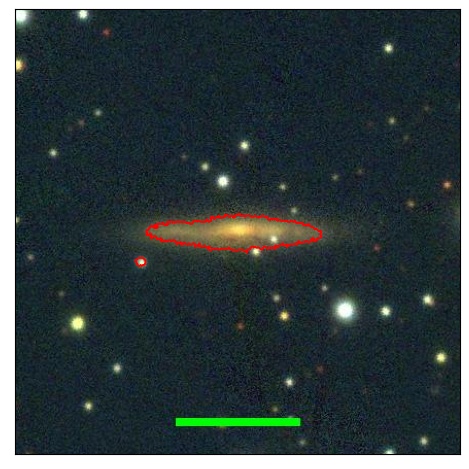

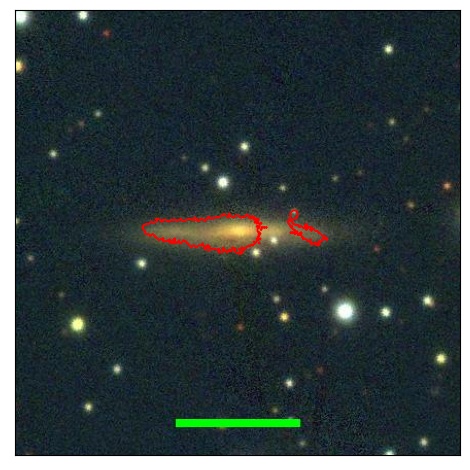

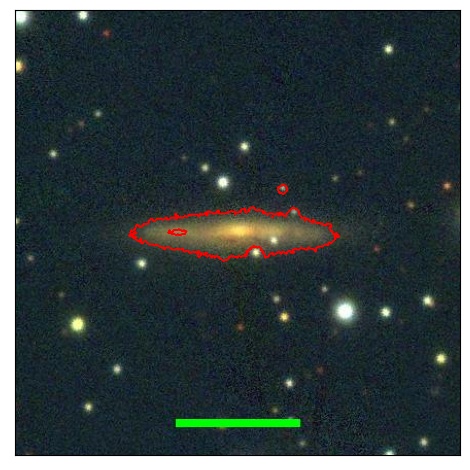

2302_077.0_contour_g2302_077.0_contour_r2302_077.0_contour_i2302_077.0_contour_z2302_077.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.805 5.118 0.808 5.206 40.397 27.944 7.091 13.086 21.777 0.579 -0.471 2.437 0.300 -0.057
r 0.796 4.897 0.813 5.339 32.333 21.982 5.225 12.186 21.964 0.588 -0.911 3.118 0.389 -0.001
i 0.797 4.915 0.803 5.070 31.619 20.284 4.837 11.807 21.299 0.596 -0.987 3.219 0.418 0.100
z 0.799 4.968 0.816 5.421 31.702 18.281 4.033 10.568 20.277 0.605 -1.045 3.507 0.246 -0.015
y 0.792 4.802 0.808 5.213 30.208 17.595 3.893 10.122 19.837 0.573 -1.186 3.536 0.108 -0.179
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 76.586013 +50.842131 4.217 ± 0.034 1.015 ± 0.008 0.759 0.241 23.43
r 76.586096 +50.842214 9.394 ± 0.029 1.737 ± 0.005 0.815 0.185 23.08
i 76.585930 +50.841696 10.148 ± 0.014 2.047 ± 0.003 0.798 0.202 21.14
z 76.585968 +50.841757 9.791 ± 0.017 1.810 ± 0.003 0.815 0.185 21.20
y 76.586029 +50.841846 8.680 ± 0.021 1.607 ± 0.004 0.815 0.185 21.13
Band kKron magAuto kPetro magPetro
g 7.73 17.052 ± 0.008 10.56 16.998 ± 0.009
r 4.76 15.644 ± 0.004 7.92 15.614 ± 0.005
i 3.96 14.813 ± 0.002 5.94 14.779 ± 0.002
z 4.06 14.312 ± 0.002 6.60 14.273 ± 0.003
y 4.58 13.907 ± 0.003 7.26 13.851 ± 0.004
2302_077.0
