The Edge-on Galaxy Database

The Edge-on Galaxy candidates in Pan-STARRS1 survey dr2 found by ANN

Examples

The request returns a single object.

Candidate 2314_034.0

150.298815 +49.337845
A : B 6.85 : 1.17
e 0.829
B/A 0.171
A/B 5.83
PA 8.3
r (mag) 15.80
ANN Votes
1.000 1.000 1.000 1.000 1.000
Visual inspection
Edge-on0
Nearly Edge-on3
Not Edge-on0
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 150.298730 +49.337619 6.710 ± 0.022 1.151 ± 0.004 0.828 0.172 8.81
r 150.298784 +49.337745 6.893 ± 0.015 1.192 ± 0.003 0.827 0.173 8.58
i 150.298774 +49.337723 7.003 ± 0.009 1.301 ± 0.002 0.814 0.186 8.58
z 150.298789 +49.337762 6.301 ± 0.017 1.089 ± 0.003 0.827 0.173 8.23
y 150.298768 +49.337709 4.521 ± 0.025 0.832 ± 0.005 0.816 0.184 8.92
Band kKron magAuto kPetro magPetro
g 3.93 16.693 ± 0.004 5.94 16.677 ± 0.005
r 3.78 16.043 ± 0.003 5.94 16.016 ± 0.003
i 3.50 15.687 ± 0.001 5.28 15.664 ± 0.002
z 3.77 15.460 ± 0.003 5.94 15.442 ± 0.004
y 5.17 15.258 ± 0.008 8.58 15.210 ± 0.011

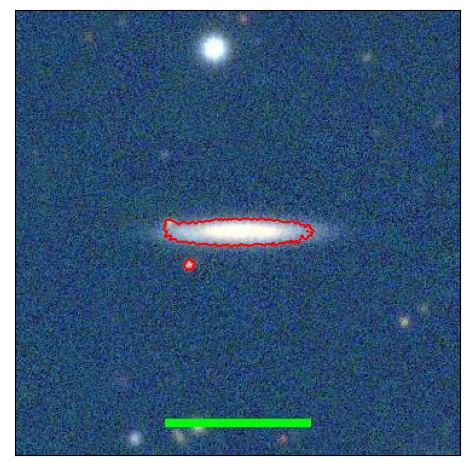

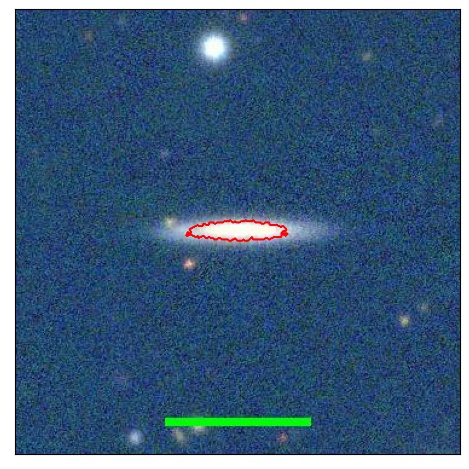

2314_034.0_contour_g2314_034.0_contour_r2314_034.0_contour_i2314_034.0_contour_z2314_034.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.829 5.850 0.829 5.854 19.939 9.762 2.485 5.659 10.741 0.553 -1.498 3.179 -0.141 -0.217
r 0.828 5.810 0.828 5.810 19.197 9.200 2.342 5.416 10.384 0.577 -1.523 3.233 0.044 -0.044
i 0.825 5.725 0.825 5.726 18.815 9.072 2.297 5.308 10.365 0.592 -1.556 3.272 0.064 0.013
z 0.827 5.787 0.827 5.786 18.894 8.441 2.266 5.266 10.357 0.593 -1.554 3.300 -0.126 -0.214
y 0.820 5.562 0.820 5.562 18.426 8.156 2.339 5.298 10.020 0.536 -1.432 3.159 -0.309 -0.523
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 150.298730 +49.337619 6.710 ± 0.022 1.151 ± 0.004 0.828 0.172 8.81
r 150.298784 +49.337745 6.893 ± 0.015 1.192 ± 0.003 0.827 0.173 8.58
i 150.298774 +49.337723 7.003 ± 0.009 1.301 ± 0.002 0.814 0.186 8.58
z 150.298789 +49.337762 6.301 ± 0.017 1.089 ± 0.003 0.827 0.173 8.23
y 150.298768 +49.337709 4.521 ± 0.025 0.832 ± 0.005 0.816 0.184 8.92
Band kKron magAuto kPetro magPetro
g 3.93 16.693 ± 0.004 5.94 16.677 ± 0.005
r 3.78 16.043 ± 0.003 5.94 16.016 ± 0.003
i 3.50 15.687 ± 0.001 5.28 15.664 ± 0.002
z 3.77 15.460 ± 0.003 5.94 15.442 ± 0.004
y 5.17 15.258 ± 0.008 8.58 15.210 ± 0.011
2314_034.0
