Candidate 0926_093.0

193.001666 -16.166150
A : B 6.33 : 1.17
e 0.815
B/A 0.185
A/B 5.40
PA 57.2
r (mag) 15.96
ANN Votes
1.000 1.000 1.000 1.000 1.000
Visual inspection
Edge-on0
Nearly Edge-on2
Not Edge-on1
SExtractor photometry. Ver 2
Band J2000 A B Ell B/A PA
g 193.001645 -16.166147 5.876 ± 0.025 1.099 ± 0.004 0.813 0.187 57.05
r 193.001682 -16.166124 6.028 ± 0.015 1.215 ± 0.003 0.798 0.202 57.34
i 193.001723 -16.166104 5.544 ± 0.015 1.128 ± 0.003 0.797 0.203 57.37
z 193.001754 -16.166086 5.179 ± 0.017 1.056 ± 0.003 0.796 0.204 57.42
y 193.001835 -16.166012 3.652 ± 0.021 0.944 ± 0.005 0.741 0.259 57.99
Band kKron magAuto kPetro magPetro
g 3.94 17.108 ± 0.005 6.60 17.114 ± 0.007
r 3.61 16.343 ± 0.003 5.94 16.328 ± 0.004
i 3.62 15.920 ± 0.003 5.94 15.904 ± 0.004
z 3.73 15.618 ± 0.003 6.60 15.603 ± 0.005
y 4.76 15.422 ± 0.007 8.58 15.435 ± 0.012

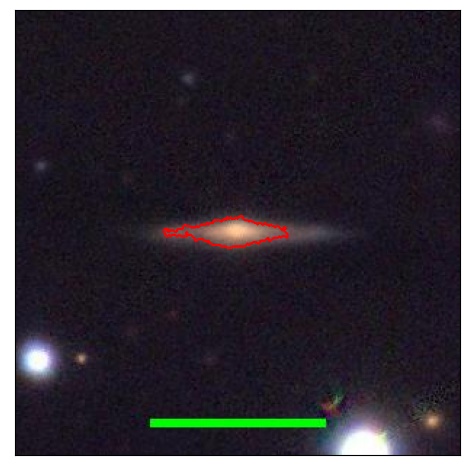

0926_093.0_contour_g0926_093.0_contour_r0926_093.0_contour_i0926_093.0_contour_z0926_093.0_contour_y
StatMorp non-parametric morphology
Band Ellcentroid a/bcentroid Ellasymmetry a/basymmetry RPetro Rhalf R20 R50 R80 Gini M20 C A S
g 0.806 5.144 0.804 5.097 18.381 8.860 1.964 4.681 9.961 0.544 -1.867 3.526 -0.040 -0.032
r 0.798 4.960 0.798 4.954 17.049 8.210 1.773 4.198 9.253 0.568 -1.934 3.588 0.085 0.041
i 0.798 4.955 0.797 4.926 16.611 7.460 1.599 3.833 8.294 0.589 -1.945 3.575 0.119 0.058
z 0.796 4.911 0.793 4.834 15.938 7.057 1.514 3.677 8.096 0.597 -1.987 3.641 -0.005 0.017
y 0.785 4.657 0.784 4.627 16.046 6.914 1.530 3.597 7.639 0.576 -1.979 3.492 -0.114 -0.012
SExtractor photometry. Ver 1
Band J2000 A B Ell B/A PA
g 193.001645 -16.166147 5.876 ± 0.025 1.099 ± 0.004 0.813 0.187 57.05
r 193.001682 -16.166124 6.028 ± 0.015 1.215 ± 0.003 0.798 0.202 57.34
i 193.001723 -16.166104 5.544 ± 0.015 1.128 ± 0.003 0.797 0.203 57.37
z 193.001754 -16.166086 5.179 ± 0.017 1.056 ± 0.003 0.796 0.204 57.42
y 193.001835 -16.166012 3.652 ± 0.021 0.944 ± 0.005 0.741 0.259 57.99
Band kKron magAuto kPetro magPetro
g 3.94 17.108 ± 0.005 6.60 17.114 ± 0.007
r 3.61 16.343 ± 0.003 5.94 16.328 ± 0.004
i 3.62 15.920 ± 0.003 5.94 15.904 ± 0.004
z 3.73 15.618 ± 0.003 6.60 15.603 ± 0.005
y 4.76 15.422 ± 0.007 8.58 15.435 ± 0.012
0926_093.0
